Hercules DJ Console Mk2 / DJ Control MP3

Small and handy controller, ideal as a portable controller. Manufacturer info

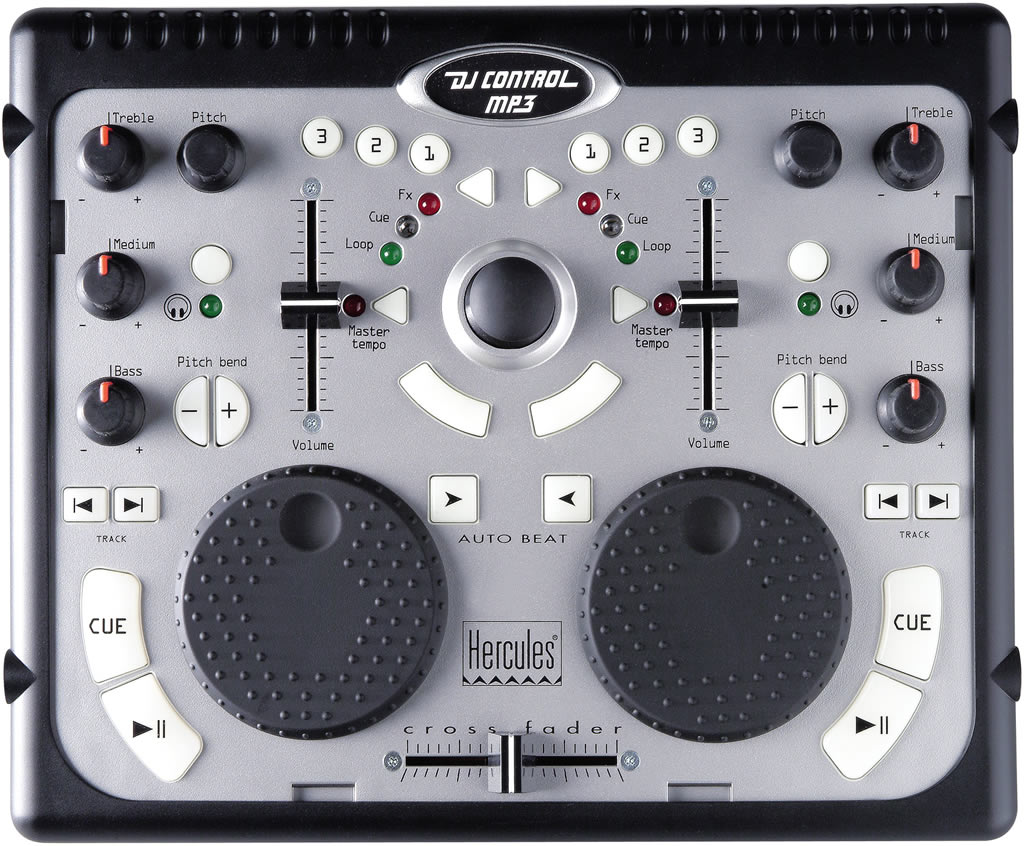

Hecules DJ Console Mk2Hercules DJ Control MP3
Detailed view: Hercules DJ Console Mk2 / Hercules DJ Control MP3

Special functions
  • The Treble knobs position the Pitch quickly at any position.
  • The Medium knobs control the gain.
  • The Bass knobs quickly position the song anywhere on it.
Playlist
Function Control
Show playlist / video output JOYSTICK left - right
Move cursor up - down JOYSTICK up - down
Open selected song JOYSTICK lower buttons
Load next / previous song TRACK
Playback
Function Control
Play / Pause / Cue PLAY/PAUSE, CUE
Positioning JOG-WHEEL (in Pause/Cue)
BASS
Pitch PITCH
TREBLE
Pitch bend PITCH BEND
JOG-WHEEL (in playback)
Audio
Function Control
Volume and mixing VOLUME
MEDIUM
CROSSFADER
PFL HEADPHONES SELECTION (Mk2 model only)
HEADPHONES
(MP3 model only)
Video
Function Control
Show playlist / video output JOYSTICK left - right
Show video at Master (VIDEO OUT) JOYSTICK upper buttons
Select video mixing effect AUTO BEAT
Display
Function Control
Elapsed / remaining time 1
Song / real (pitch based) time 2
Show / hide BPMs 3
