Hercules DJ Console Remix / DJ Control Steel

They are essentially the same machine with almost identical controls. Only some have different names between the two models, and DJ Control Steel adds some additional controls.

BETA: Support for these devices is based only on the manufacturer's specification. We have not tested the device directly. Comments, problems? Contact us

Manufacturer info

Hercules DJ Console RemixHercules DJ Control Steel

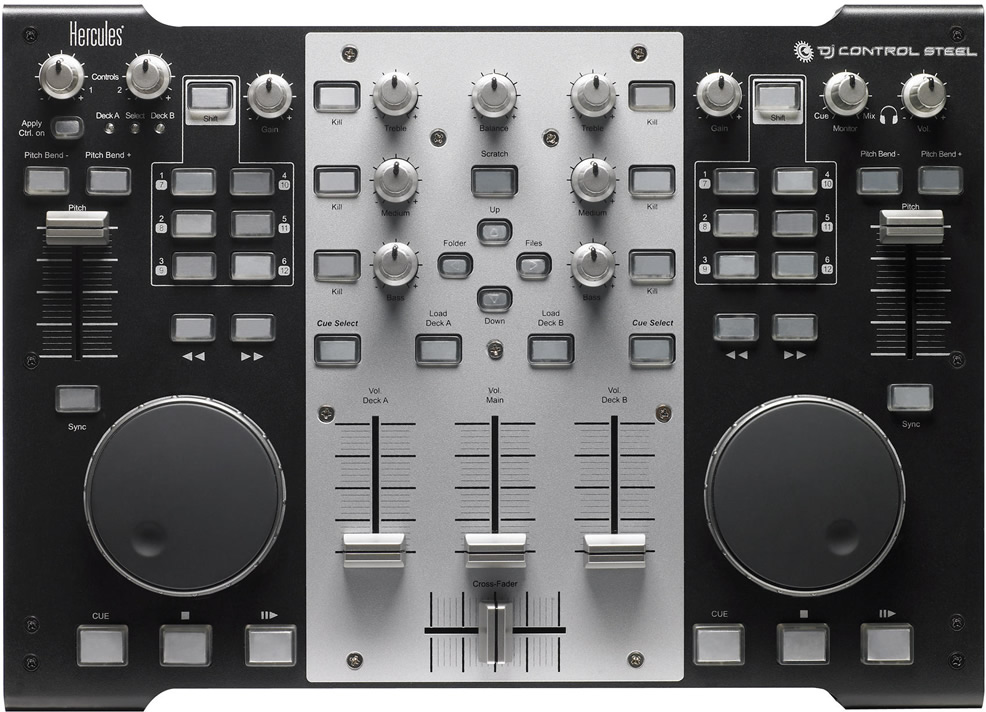

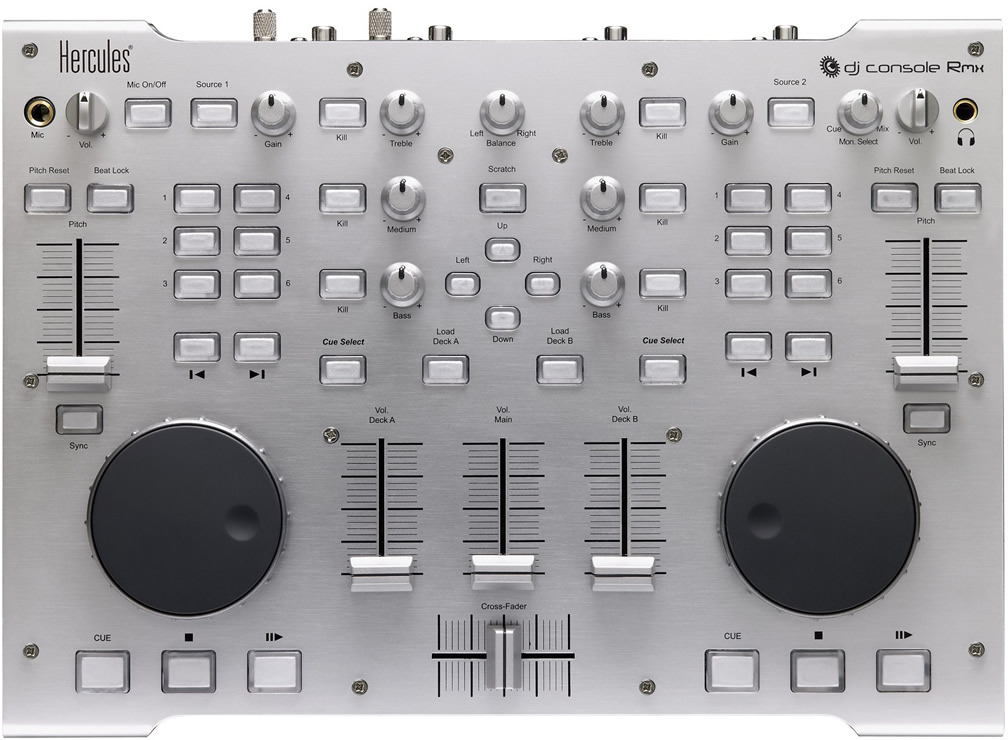

Detailed view: Hercules DJ Console Remix / Hercules DJ Control Steel

Special functions

SYNC modifies the behavior of some controls. Hold when specified for accesing the modified function. Equivalent to the CTRL key on your keyboard.

The BASS knobs quickly position the song anywhere on it.

Playlist
Function Control
Show playlist / video output LEFT-RIGHT (FOLDER-FILES on Steel)
Move cursor up - down UP-DOWN
SYNC + UP-DOWN (fast)
Open selected song LOAD DECK A-B
Close open song SYNC + LOAD DECK A-B
Playback
Function Control
Play / Pause / Cue PLAY/PAUSE, CUE, STOP
Positioning JOG-WHEEL (in Pause/Cue)
<< >>
SYNC + << >> (precise)
BASS
Pitch PITCH
SYNC + PITCH BEND (Pitch Reset-Beat Lock on RMX)
SYNC + JOG-WHEEL
Pitch bend PITCH BEND (Pitch Reset-Beat Lock on RMX)
JOG-WHEEL (in playback)
Audio
Function Control
Volume and mixing VOL DECK A-B
VOL MAIN
*
GAIN
BALANCE
CROSS-FADER
PFL CUE SELECT

* VOL MAIN provides amplification at the max value. Be careful, it could distort the sound. The normal value is 3/4.

Video
Function Control
Show playlist / video output LEFT-RIGHT (FOLDER-FILES on Steel)
Show video at Master (VIDEO OUT) KILL BASS
Select video mixing effect SCRATCH
