Hardware controllers for Deejaysystem(tm) MK2 / VJ2


Manual > Hardware controllers > KontrolDJ KDJ500 Español

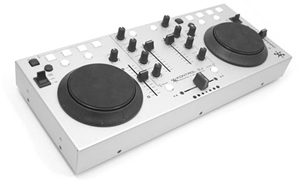

Kontrol DJ KDJ500

Generic MIDI controller completely "Made in Spain". It offers many different control types (encoders, faders, wheels ..) which you can configure to your liking. No labels, but at least the Play and Cue buttons are distinguished by their green and red lighting, and other controls are fairly intuitive. Interesting are the mode selection buttons (SELECT), which allow you to set different functions in the same group of controls. Comes with adapters for attaching to a Rack.

Manufacturer info

IMPORTANTE: Before opening Deejaysystem is necessary to initiate the application Konverter that comes in the driver installation CD with the following configuration:

  • Midi device: Kontrol DJ Midi Out: Port 1
  • Template: none (...kontrol dj hardware template)

Playlist
Function Control
Show playlist / video output 1
Move cursor up - down TRACK
Open selected song TRACK PUSH
Move selected songs SHIFT + TRACK
Select multiple songs SHIFT + TRACK PUSH
Playback
Function Control
Play / Pause / Cue PLAY, CUE
Positioning JOG-DIAL (in Pause/Cue)
LOW
Pitch PITCH
SHIFT + JOG-DIAL
Pitch bend JOG-WHEEL (in playback)
Audio
Function Control
Volume and mixing VOLUME
GAIN
CROSSFADER
PFL PFL
Auto gain SHIFT + 2
Video
Function Control
Show playlist / video output 1
Show video at Master (VIDEO OUT) 4
Select video mixing effect SHIFT + 4
Display
Function Control
Elapsed / remaining time 3
Song / real (pitch based) time 2
Show / hide BPMs SHIFT + 3
